[ ショップ名 ] ウェビック 楽天市場店

[ 現在価格 ] 10007 円 (税込)

[ PRポイント ]

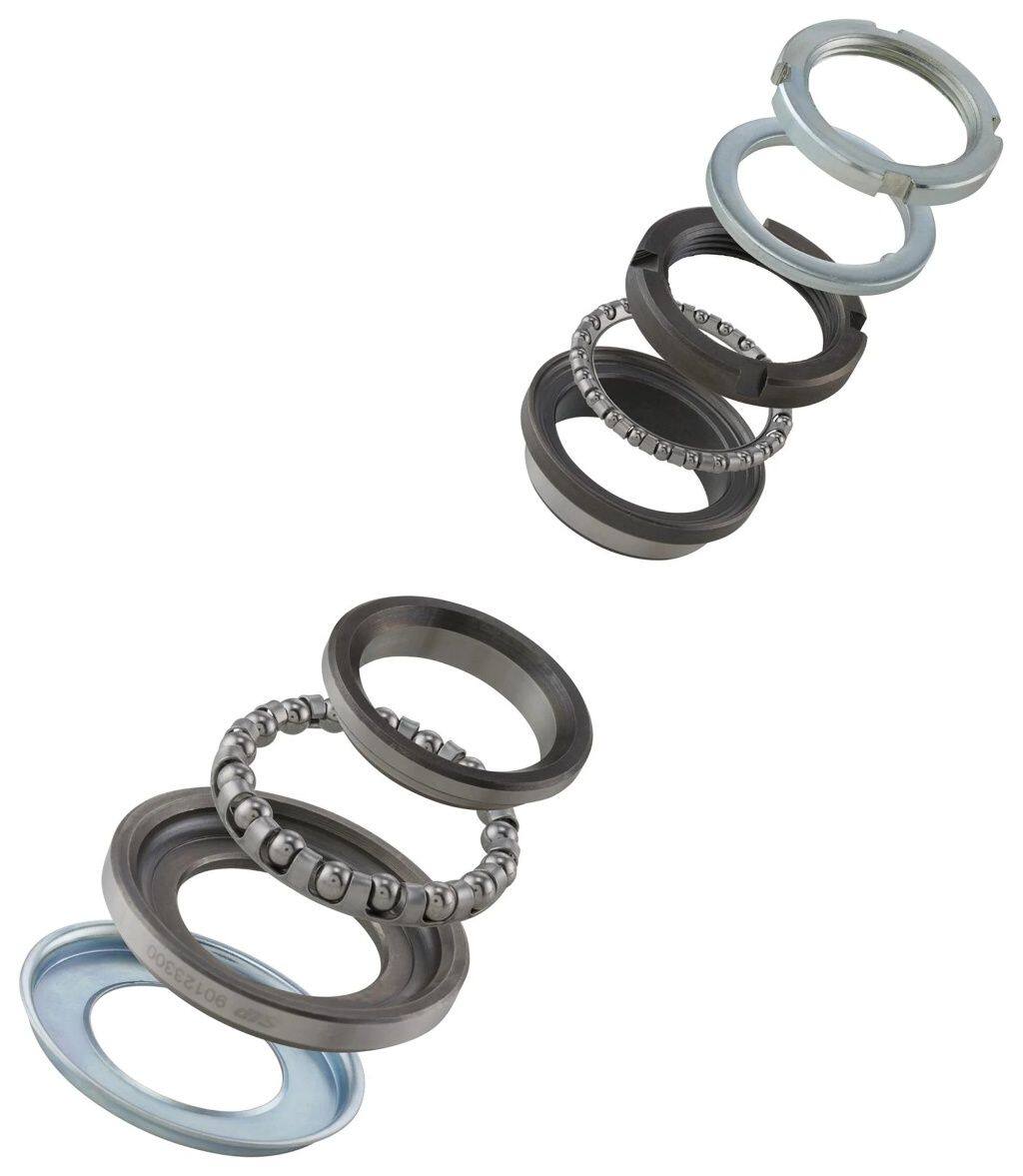

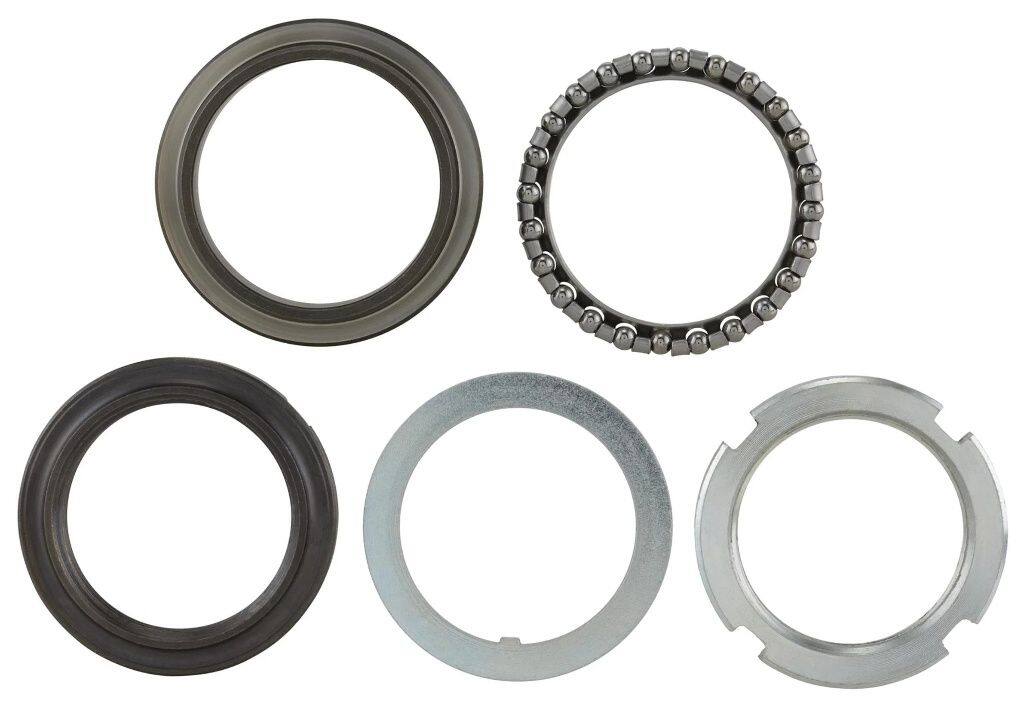

SIP Scootershopエスアイピー スクーターショップ ステムベアリング 　【SIP SPAREPARTS】 ステアリングヘッドベアリングセット SIP PREMIUM 上／下

[ 商品説明 ]

■商品概要9-partsΦ Bearing Shell Frame top 35x4.5／Bearing Shell Framebottom64x8／Bearing Shell Steering Column 35x9.5，with SteeringHeadBearingGrade 1＊ - first-class repairOEM number(s)：＊＊GR10000-1 + GR10000-2＊＊ (Mauro Pascoli)■詳細説明Steering head bearings on the basis of caged ball-bearings asfoundon all Vespa PX and PK models，now also suitable for allvintageVespa models.The steering head bearings are an essential component forridersafety and a stable suspension.If a scooter does not display directional stability or hasvaguehandling，we recommend that their function and serviceabilitybechecked.It is a relatively simple job and can be done in no time.First pull the scooter onto its centre-stand and move thesteeringassembly from left to right a couple of times to check foranytight points or resistance to free-movement.Then，moving to the front of the scooter，take hold of theexposedlower end of the steering column and attempt to move itforwardsand backwards.If you notice any free movement or clicking sounds then this isalsoan indication that the bearings are damaged or worn andrequireimmediate replacement.A steering column that has，over time，become loose can rarelybefixed by simply having the bearings tightened so we recommendthefitting of a new set of bearings every time.Easy mounting，even for vintage models.Available for all vintage Vespa models.All necessary components are included in the delivery.All Vespa models produced since the sixties share the samesteeringhead bearing size，earlier models were produced with avariety ofshapes and diameters.The older models were factory-fitted with a type of steeringheadbearing that required each individual ball-bearing to bepositionedcarefully onto each bearing cup duringmounting，provisionally heldthere by a film of grease.This involved procedure requires skill，experience and a lotofpatience to be satisfactorily completed and there can alsobeproblems finding new bearings of this type due to a lackofdemand.Their replacements are then often of bad qualityand/orextraordinarily expensive.To facilitate a more efficient repair we decided to have VespaPX/PKstyle caged bearings produced in various sizes to also suitallearlier produced Vespa models.This means the new caged bearings are identical for both theupperand lower ends of the steering column fixings.The bearing cups，attached to the frame and steering column，havebeenindividually designed to suit each specific model.This involved the redevelopment and production of new partsandtools used in their manufacture.A case in point is represented by the dust shrouds we nowhaveavailable for the Vespa V1-V33 models.We had to start from scratch in order to develop and produce anewpressing tool for these ultra-rare parts！90122600 for VNA，VBA，VGLB190122910 for V1-VM，VU，Hoffmann，ACMA，Motovespa90120100 for VBC，Sprint，Rally，PX/V50，PV，PK90123300 for VN-VL，VB，VGL1，VS1-VS5Mounting tip：The PIAGGIO workshop manual recommendationsformounting these bearings are as follows：Tighten the uppersteeringhead bearing to 60-70Nm and then loosen the nut by about aquarterturn.The locking nut can then be tightened to 50-60Nm to finishthejob.Locking nut.Tanged washer.Upper cup/upper bearing.Upper bearing race.Lower cup/upper bearing.Upper cup/lower bearingLower bearing race.Lower cup/lower bearing.Dust shroud.Conclusion：The most simple method of updating vintage Vespamodelsto a modern standard of steering head bearings！Lubricating grease MALOSSI MHR ＃M7615375BCentre punch ＃16029000.SIP mounting tool for the frame upper/lower bearing cups ＃21330000.■注意点※取扱説明書が付属する場合は外国語となります。※輸入商材の為、納期が遅れる場合がございます。あらかじめご了承ください。※画像には他の商品が含まれている場合があります。※メーカー都合により商品の仕様変更がある場合がございます。ご了承ください。■適合車種125 N 125 N 年式: 59  備考: MOTOVESPA 125cc type VT engine 2T AC125 S 125 S 年式: 59  備考: MOTOVESPA 125cc type VTT engine 2T AC150 GS 150 GS 年式: 67  備考: MOTOVESPA 150cc type 04C engine 2T AC 150 GS 年式: 55-61  備考: 150cc type VS1-5T engine 2T AC150 Sprint 150 Sprint 年式: 66  備考: MOTOVESPA 150cc type 04C engine 2T AC 150 Sprint 年式: 65-74  備考: 150cc type VLB1T engine 2T AC150 S 150 S 年式: 62  備考: MOTOVESPA 150cc type VTT engine 2T AC 150 S 年式: 64  備考: MOTOVESPA 150cc type V13502C engine 2TAC160／GT 160／GT 年式: 68  備考: MOTOVESPA 160cc type 09C engine 2T AC125 125 年式: 54-57  備考: 125cc type VN1-2T engine 2T AC150 (T1／150) (D) 150 (T1／150) (D) 年式: 55  備考: 150cc type VL1T engine 2T AC150 (T3／150) (D) 150 (T3／150) (D) 年式: 57-59  備考: 150cc type VD2T engine 2T AC150 GL Touring (DK) 150 GL Touring (DK) 年式: 57-58  備考: 150cc type VGLA-B engine 2T AC150 GS (D) 150 GS (D) 年式: 56-65  備考: 150cc type VDTS engine 2T AC150 150 年式: 54-57  備考: 150cc type VL1-3T engine 2T AC 150 年式: 57-58  備考: 150cc type VB1T engine 2T AC
