[ ショップ名 ] ウェビック 楽天市場店

[ 現在価格 ] 5725 円 (税込)

[ PRポイント ]

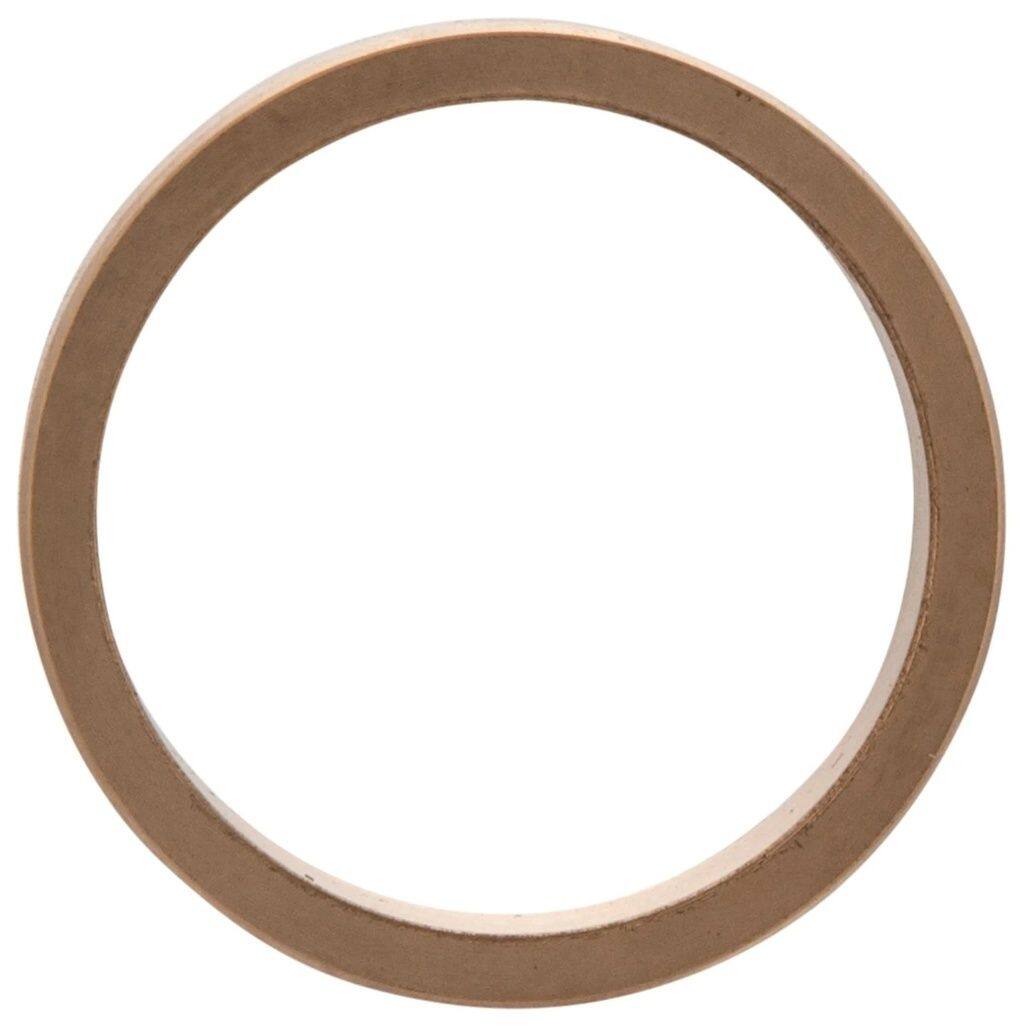

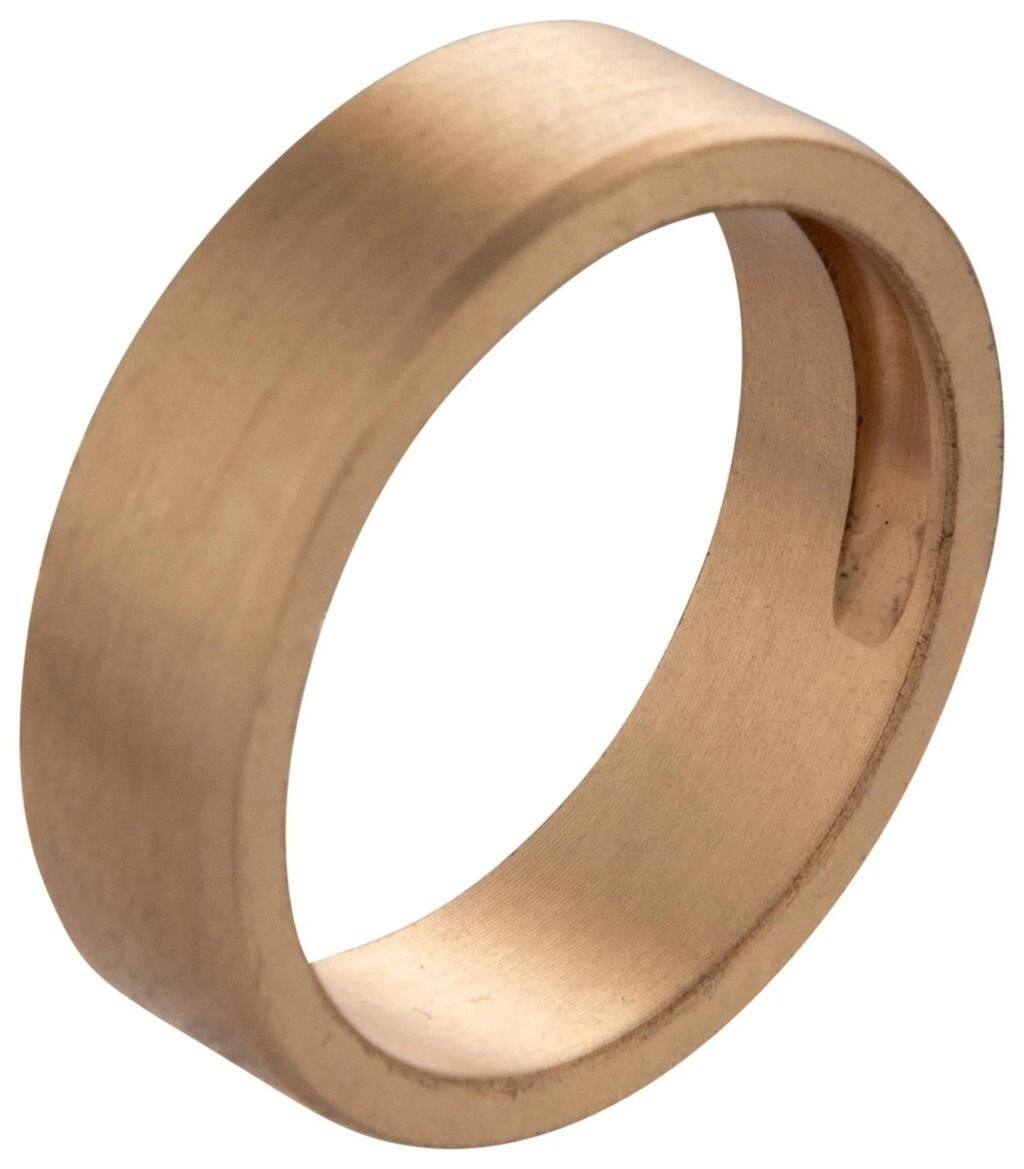

SIP Scootershopエスアイピー スクーターショップ ベアリング 　【SIP SPAREPARTS】 プレーンベアリング ドライブシャフト用 SIP 32x27.5x8.9 mm セレクターボックス 25645用

[ 商品説明 ]

■商品概要bearing bronze gunmetalstandard measure for new drive shaftGrade 1＊ - first-class repairOEM number(s)：25645 (PIAGGIO)■詳細説明Precision-turned bronze bearing made from genuine 'gunmetal'plainbearing material.For all wideframes with Sliding Bearing on the shift lever sideofthe Driveshaft.From Vespa 98 up to Vespa 125 VN1(-＞6000)，Vespa has installed aBallBearing in the Kickstart Lever Slotted Bush.From the Vespa 125 VN1(6001-＞) onwards，a switch was made toSlidingBearing.The Sliding Bearing is pressed into the Slotted Bush withslightpressure.Previously only rarely available and often made ofunsuitablematerial (brass)，this Bushes is now manufactured to thehighestquality in Germany.The material is genuine gunmetal，which is ideally suited tothistype of bearing，the material of the Shaft and lubrication in anoilbath.Two versions of the Sliding Bearing are available：Version A with standard dimensions，plug-and-play to fitas-newDriveshafts，such as those supplied by Pinasco (26270932).Version B has an oversize inner diameter (D 27.0 mm)，i.e.it is smaller and therefore also fits on old，worn Driveshaftswhosebearing surface has been machined and reground，forexample.A lathe is recommended for repairing the Driveshaft andadjustingthe Sliding Bearing version B.The bearing manufacturer specifies the required internalclearanceas being 0.05 to 0.1 mm larger than the diameter oftheDriveshaft.Detailed Mounting Instruction can be found in the downloads.■注意点※取扱説明書が付属する場合は外国語となります。※輸入商材の為、納期が遅れる場合がございます。あらかじめご了承ください。※画像には他の商品が含まれている場合があります。※メーカー都合により商品の仕様変更がある場合がございます。ご了承ください。■適合車種125 125 年式: 54-57  備考: 125cc type VN1-2T engine 2T AC150 (T1／150) (D) 150 (T1／150) (D) 年式: 55  備考: 150cc type VL1T engine 2T AC150 (T2／150) (D) 150 (T2／150) (D) 年式: 56  備考: 150cc type VD1T engine 2T AC150 (T3／150) (D) 150 (T3／150) (D) 年式: 57-59  備考: 150cc type VD2T engine 2T AC150 GL 150 GL 年式: 62-64  備考: 150cc type VLA1T engine 2T AC150 GS (D) 150 GS (D) 年式: 56-65  備考: 150cc type VDTS engine 2T AC150 GS 150 GS 年式: 55-61  備考: 150cc type VS1-5T engine 2T AC150 150 年式: 54-57  備考: 150cc type VL1-3T engine 2T AC 150 年式: 57-58  備考: 150cc type VB1T engine 2T ACACMA 150 GL ACMA 150 GL 年式: 56-58  備考: 150cc type VGL1T engine 2T AC
